Enterprise Architectures

There appear to be two major types of orientations for Enterprise Architecture (EA), the first is process oriented (i.e. Zachman), and the other is more vision oriented (i.e MetaGroup) with many subsets of these two combining various parts of either of the other two.

I do not mean to put down or demean any other type of Enterprise Architecture, but these two seem to be the major basis for most of the major work going on today.

Zachman

The Zachman Framework for Enterprise Architecture, authored by John Zachman, draws upon the discipline of classical architecture/construction and engineering/manufacturing to establish a common vocabulary and set of perspectives-a framework-for defining and describing today's complex enterprise systems. It is a logical structure for classifying and organizing those elements of an enterprise that are significant to both the management of the enterprise and the development of its information systems.

From my perception, the Zachman view is from the IT "trenches", based on the Zachman Framework, it prescribes defining the architecture in many different cells within that framework using many different charting techniques to achieve the most visual representation.  For a complete, in-depth representation of an Architecture, the Zachman process cannot be faulted for completeness.  It does take extensive time to complete the framework, although John Zachman indicates that by completing only certain cells with in the framework can produce a useable product.  Large organizations with a significant personnel budget generally are the adopters of this architecture, for example the Federal Government.

MetaGroup

The Metagroup Enterprise Architecture Strategies (EAS) process was designed to be developed in a short period of time with useful results up front.

Enterprise Architecture Strategies provides an invaluable, ongoing resource that enables organizations to create an adaptive architecture that "engineers out" everything that inhibits change, while "engineering in" a high tolerance for the unanticipated. Offering a set of architectural best practices to guide IT organizations in the process of designing a flexible technical infrastructure, EAS helps clients assess effectiveness, enhance adaptability, and lower total cost of ownership.

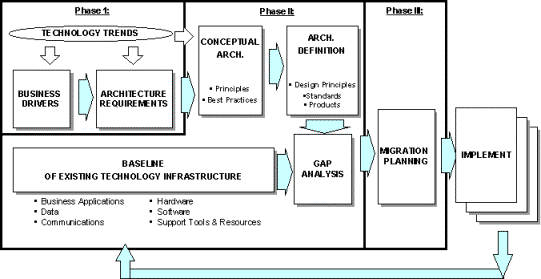

The EAS process can be summarized by the following chart

Source:  State of California/Employment Development Department/Business Driven Architecture



These architectures are generally developed by large states and organizations with a more limited staff.

Architecture Components

It is my point of view that components of MetaGroup process architectures can be "modularized" and used to develop new architectures for smaller entities. After all aren't the Technology Trends, Business Requirements (WEB and more customer service), some of the Architectural Requirements, Principles, Best Practices, and Design Principles the same in the State of Connecticut, the Employment Development Department of the State of California, the State of Ohio and Texas Department of Human Services.  It would certainly seem like it if you read their individual Enterprise architectures in detail.

So What?

Should each architecture be independent or shareable, with canned components?   Why should each effort to extract the Technical Trends (for instance) result in any different assumptions since we are all experiencing the using and extending the same technology?  Aren't Best Practices industry wide, not limited to a single organization?



Any thoughts on this idea?
